Pallet Racks & Warehouse Storage in Bellmead, TX

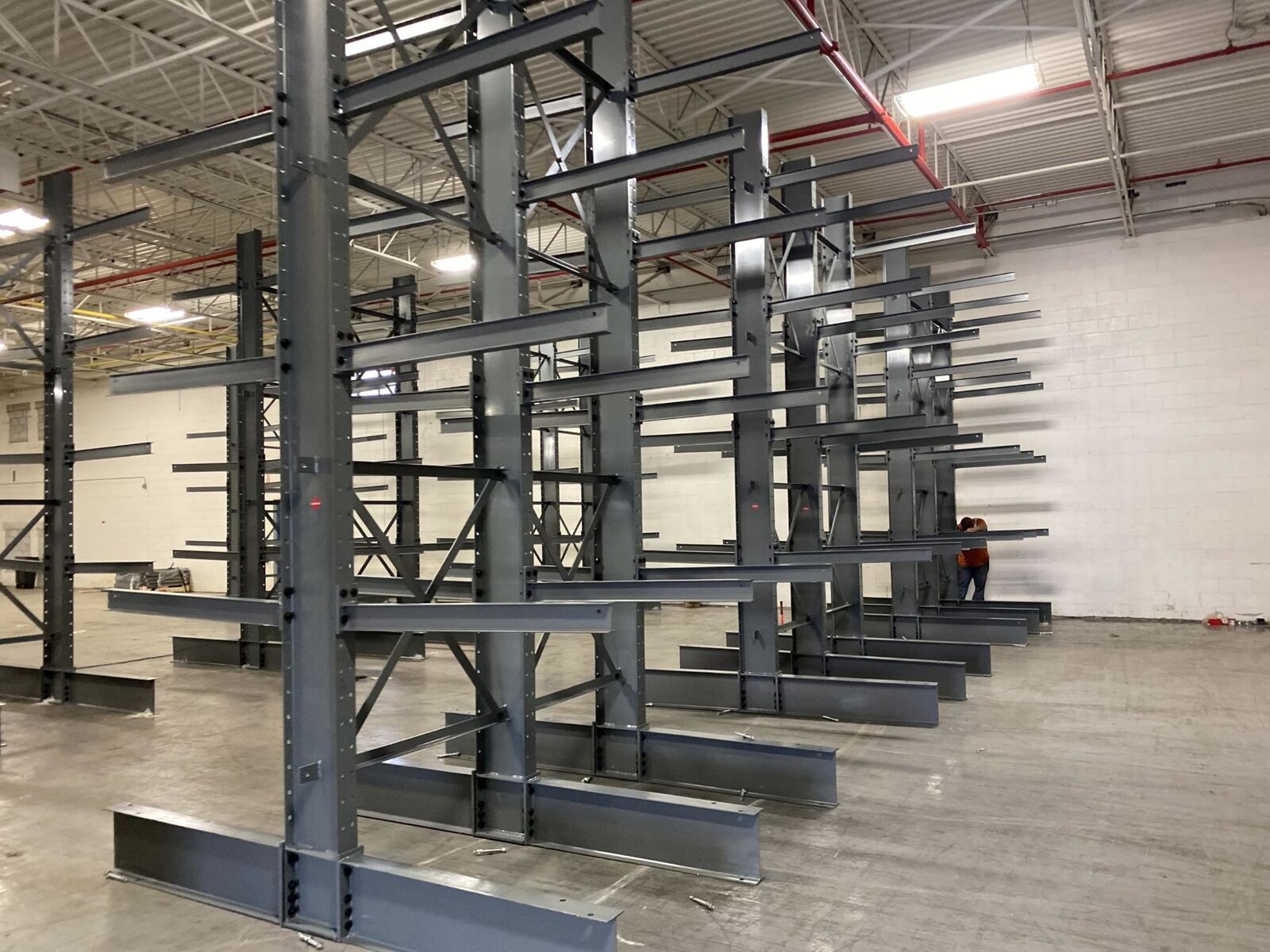

Cantilever deserves comparison where bundles extend beyond a conventional pallet footprint. Measure the stored length and establish support points from the material's stiffness and weight distribution. Arm spacing should not simply fill the wall. Record whether operators move complete bundles or select individual lengths, because the remaining stock can have different support needs from the full incoming package.

Check arm loading and total column arrangement together. An uneven bundle can distribute weight differently from a uniformly loaded pack. Include fork placement, attachments and withdrawal direction in the review. The working area must accept the full length during retrieval and the turn away from the row, not merely the footprint of a truck parked in front of the arms.

Heavy-duty selective pallet racking provides direct access to palletized metal, packaged components and work-in-process when matched to their loads. Record the maximum weight rather than estimating from an average delivery. Check the pallet and where the material bears. A small footprint can carry substantial weight, so an apparently compact load should remain identifiable in the capacity schedule.

Specify beam capacity at the chosen span and loads per level. Frame arrangement, elevations and accessories are reviewed as a configuration. Loose lengths should not enter a pallet rack bay unless their support and handling were addressed. Work-in-process also needs an assigned staging or storage location; choosing a convenient empty position does not establish that a load belongs on its supports or fits the retrieval route.

Bellmead Industrial Park, the BEDC Subdivision, is reached by rebuilt Tirey Road. The city has sold 13-acre lots for engineered-steel manufacturing buildings. Recent BEDC projects include a 25,000-square-foot pre-engineered building for vehicle upfitting and a 20,000-square-foot machine-tool plant. These are local building facts, not our projects or dimensions to apply to an unmeasured customer layout.

Typical metal shops and small office/warehouses along New Dallas Highway and Loop 340 need a receiving-to-work-area plan. Place frequently retrieved components where they can be accessed without crossing long-stock withdrawal. Reserve space to check incoming bundles and prepare material for the next operation. A shorter storage run may work better than extending arms across a route that must stay active throughout the shift.

Aisle width accommodates the truck and its carried load. Long material needs a broader envelope than loads from warehouse pallet racks, especially at row ends. Draw approach, lift, withdrawal and turn separately. Test those movements with adjacent stock and staging present so the plan remains usable when occupied. Sheet stock may require its own supported load arrangement and retrieval method rather than an assumed fit on arms selected for tube bundles.

Agree on installation staging so loose steel and active pallets stay outside assembly. Verify arm elevations, pallet rack beam levels and selected supports before inventory assignment. Labels should associate each capacity with its actual row and loading arrangement. Representative handling trials can check approaches before a full batch occupies the system. Record restrictions on length, load weight and placement method for those who replenish and retrieve the stock.
